Adjustable Cross

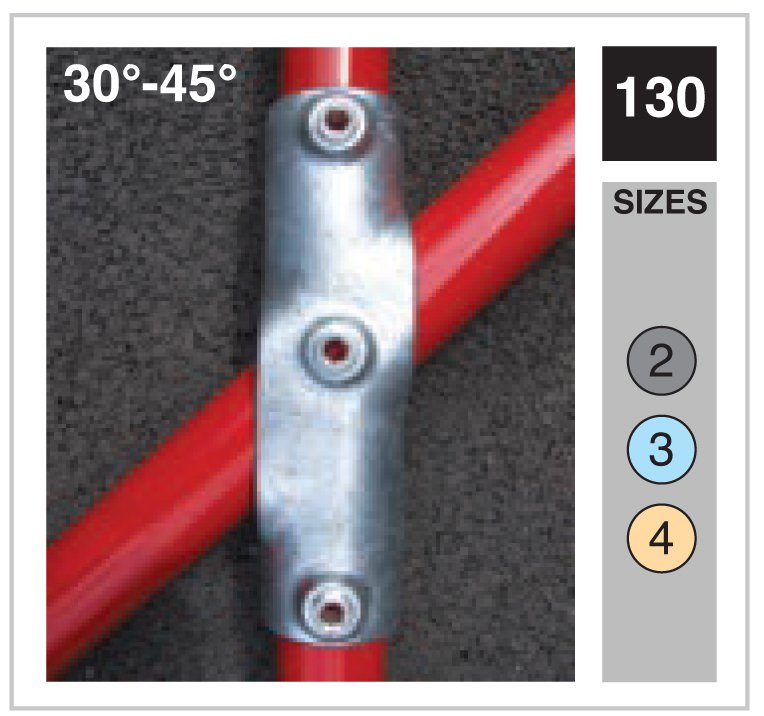

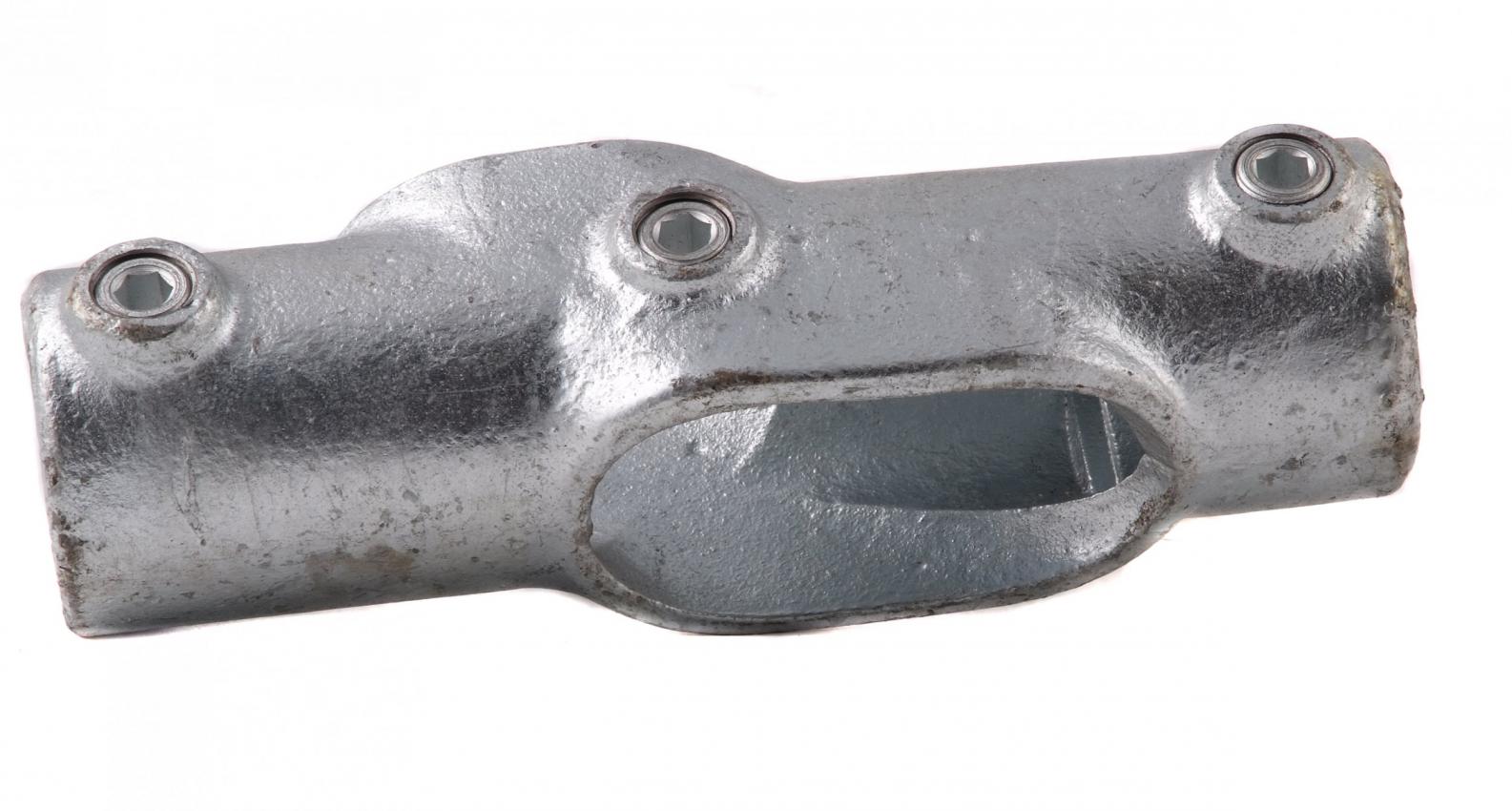

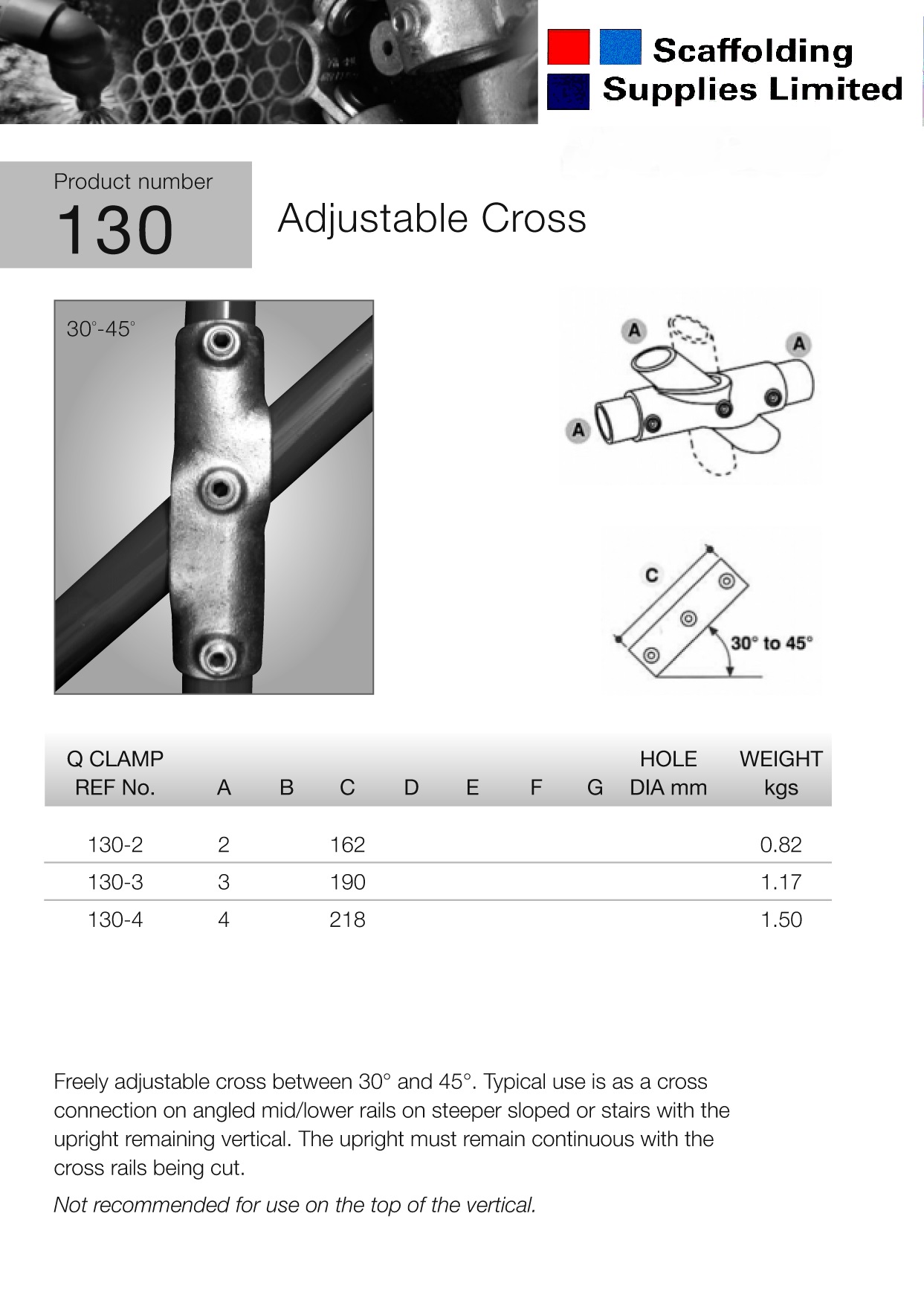

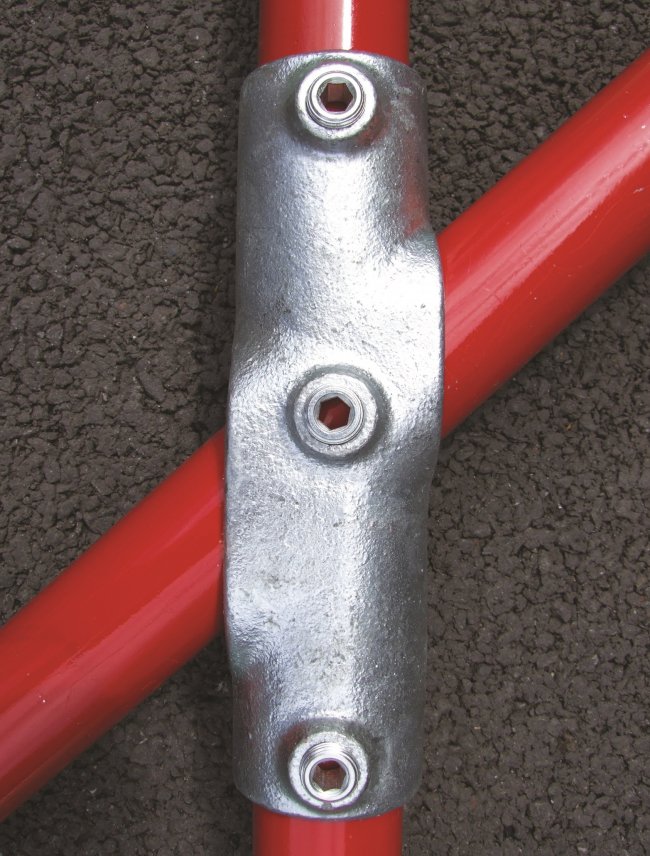

Adjustable Cross Freely adjustable cross between 30° and 45°. Typical use is as a cross connection on angled mid/lower rails on steeper slopes or stairs with the upright remaining vertical. The upright must remain continuous with the cross rails being cut. Not recommended for use on the top of the vertical.
  • Size4: 48.3mm OD
  • Size3: 42.4mm OD
  • Size2: 33.7mm OD
  • Size1: 26.9mm OD

Tech Details:



Quantity:
